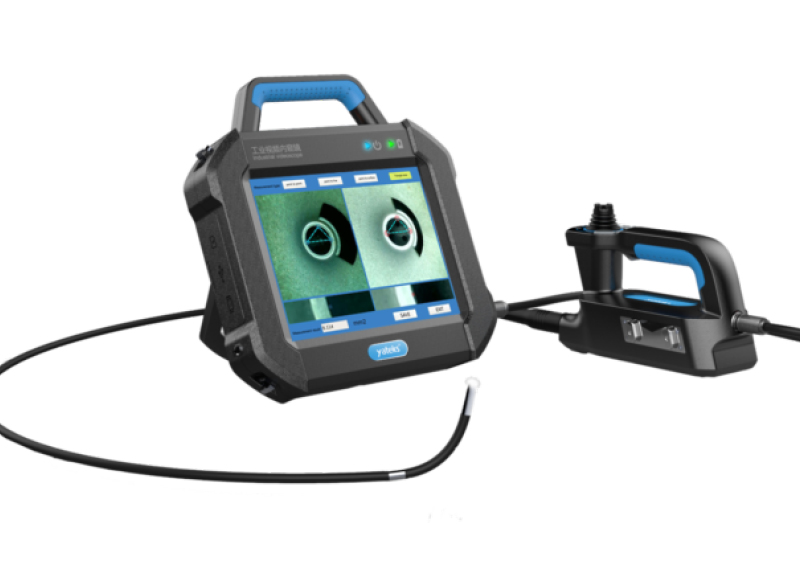

Yateks P Series Industrial Video Borescopes are modular systems with many unique features, including dual-view capabilities, 4-way motorized articulation, and HD touch screens. Yateks borescopes are available in various diameters, probe lengths, and focal lengths. With over 1,000,000 pixels delivered from an HD CMOS sensor, the Yateks P Series is suitable for inspection in various industries, including aerospace, aviation maintenance, overhaul, repair (MRO), automotive, and power generation
We also offer UV versions perfect for fluorescent penetrant inspections (FPI).
Technical Features:
- With high-definition 3D measurement capability the P Series can accurately measure the size of defects through point-to-point, point-to-line, point-to-surface, area measurement;

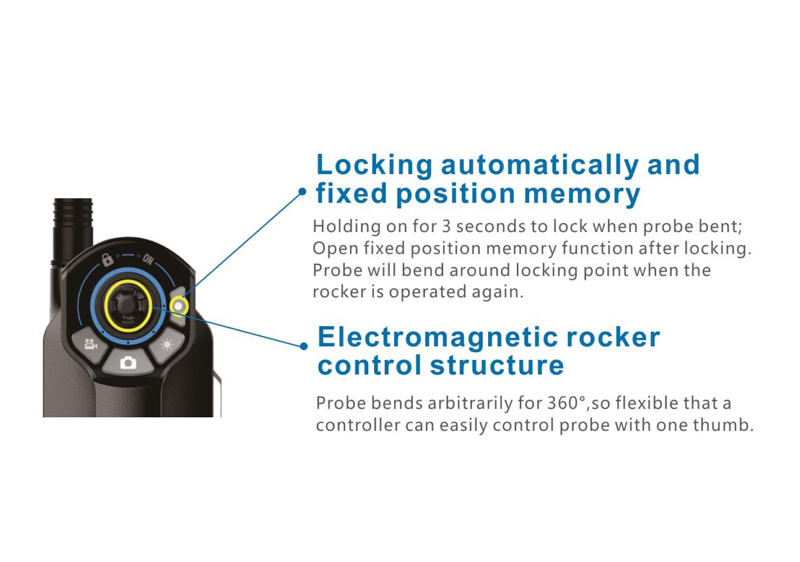

- Automatic camera position locking and precise positioning;
- 4-way 360° articulation with stepping function;

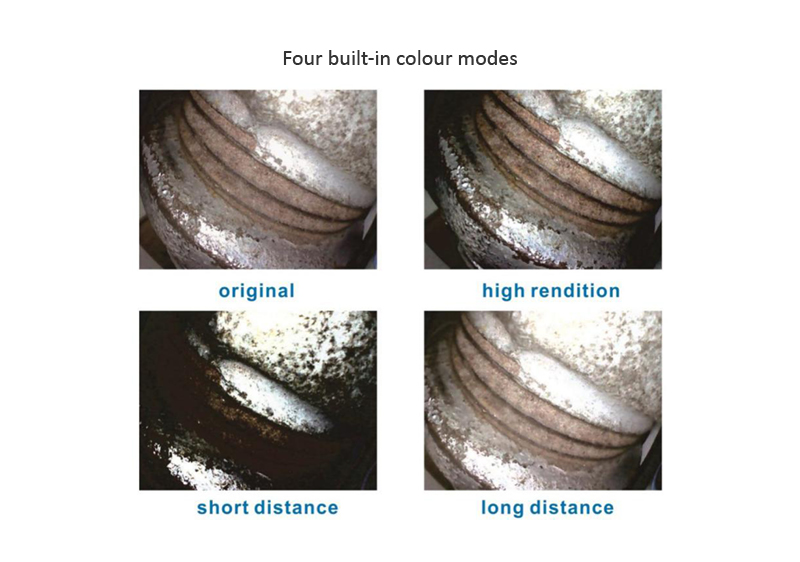

- Four built-in colour modes
- Our probes are corrosion proof, waterproof (up to 1 meter) and dust-proof to an IP67 rating. Reliable examination can be carried out even under the harshest of conditions.
- Anti-wear insertion tubes are woven with 4-layers of tungsten alloy for virtual indestructability.
- The operator’s handle is interchangeable to meet different application requirements.
Additional Features
- A simple, easy to operate 8-inch industrial touch screen;
- Viewing terminal has customised support mechanisms for hands-free operation.
- Viewing terminal and scope have quick-click-connection, with a maximum separation distance between operator handle and terminal by up to 2 meters.
- Mini USB, high-capacity SD card, VGA TV out interface (which allows the P-Series to be connected to a large-screen display) – making it easy for multiple people to share or analyse together;
